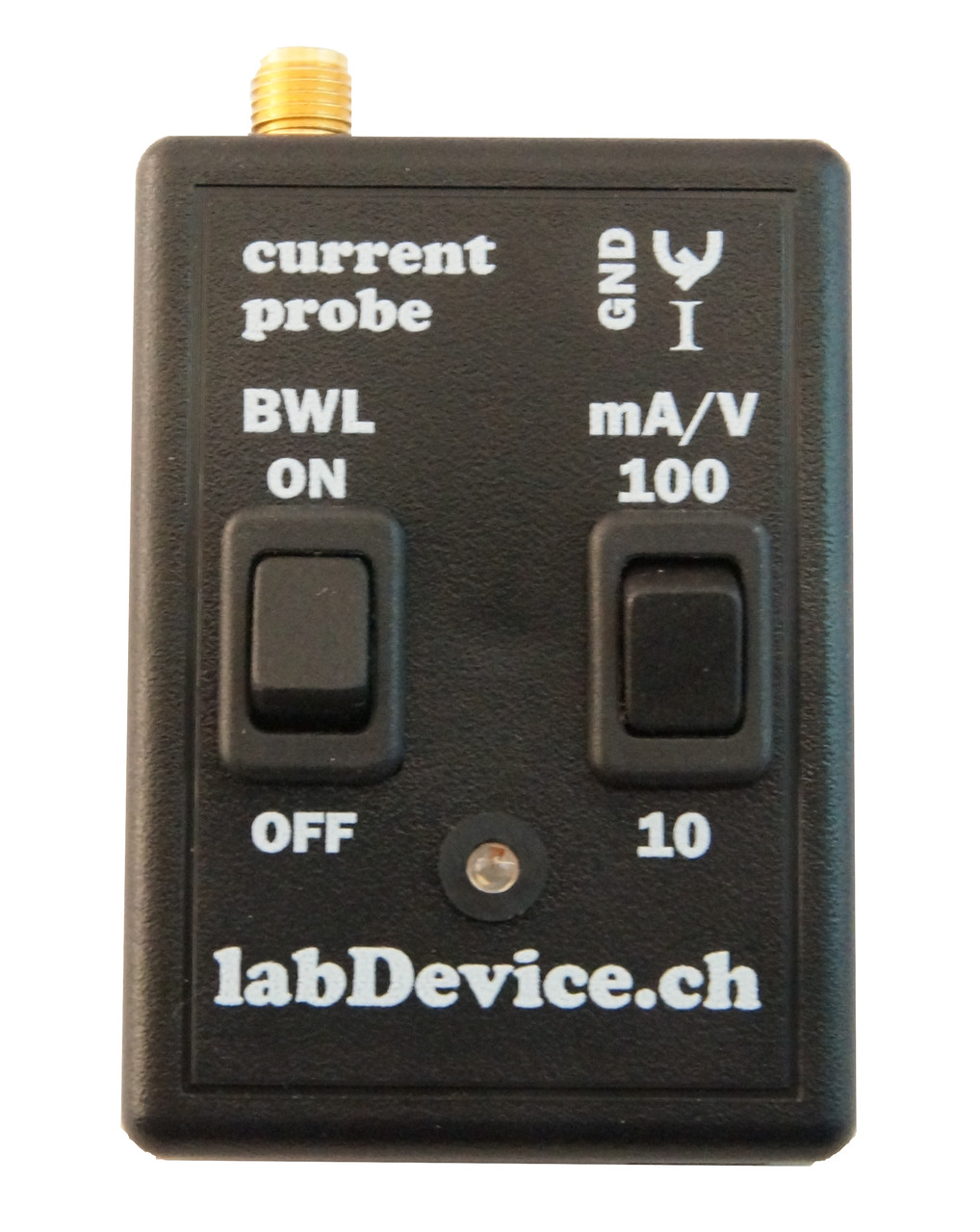

Oscilloscope current probe +/- 1A
- Current probe with 100mA and 1A range
- Up to 2MHz bandwidth
- AC and DC
- Positive and negative currents
- Optional bandwidth limitation for slower current profile measurements
- No current clipping even outside of the measurement range
- Shunt 0.1Ω
- Selected range 1A: Output 10V → 1A
- Selected range 100mA: Output 10V → 100mA
- Input voltage range -9.7V...+10.0V

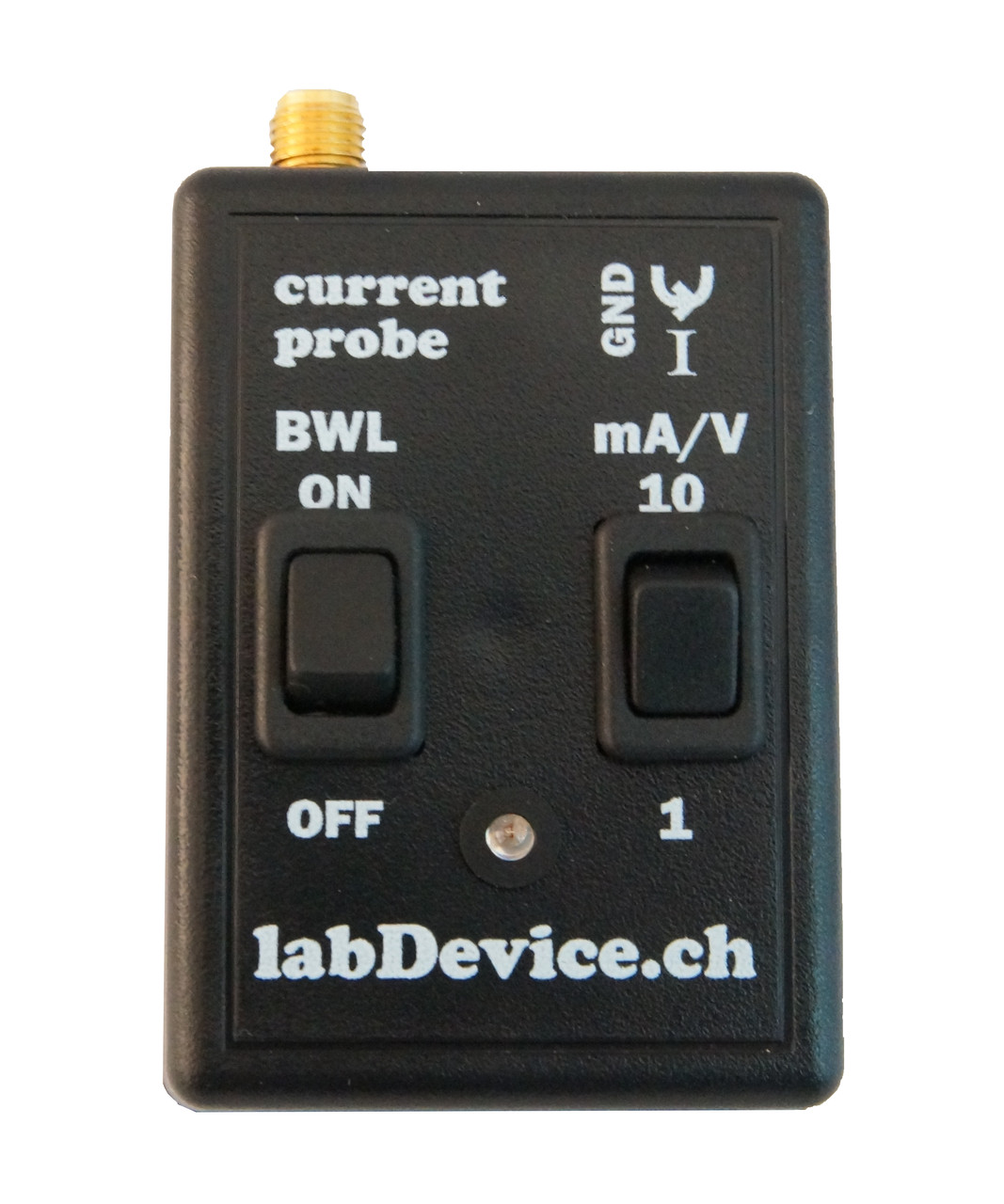

Oscilloscope current probe +/- 100mA
- Current probe with 10mA and 100mA range
- Up to 2MHz bandwidth
- AC and DC
- Positive and negative currents
- Optional bandwidth limitation for slower current profile measurements
- No current clipping even outside of the measurement range
- Ideal for low power measurements in the uA -mA range
- Shunt 1Ω
- Selected range 100mA: Output 10V → 100mA
- Selected range 10mA: Output 10V → 10mA
- Input voltage range -9.7V...+10.0V
